PET bottled Water Sauce Filling Machine Rated Capacity:40-60BPM（based on 750ml, with 300ml, 500ml included, PEscrew cap） Application: Sauce Jam Filling temperature: about 82℃
Brand: King Machine
Product Description

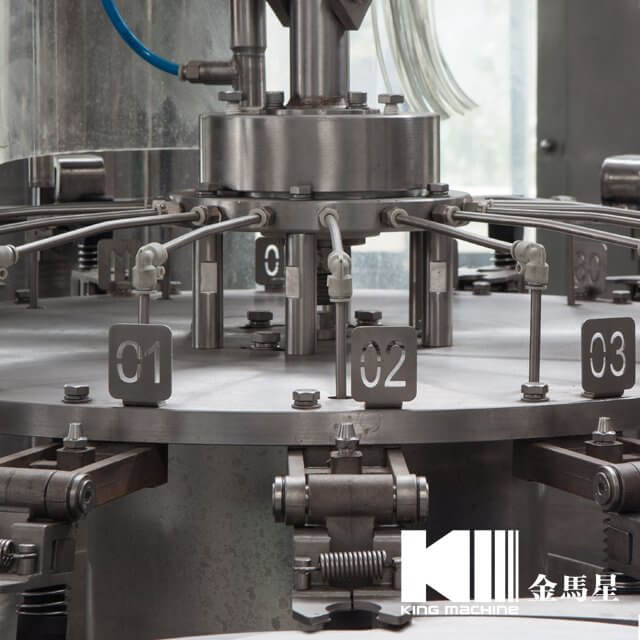

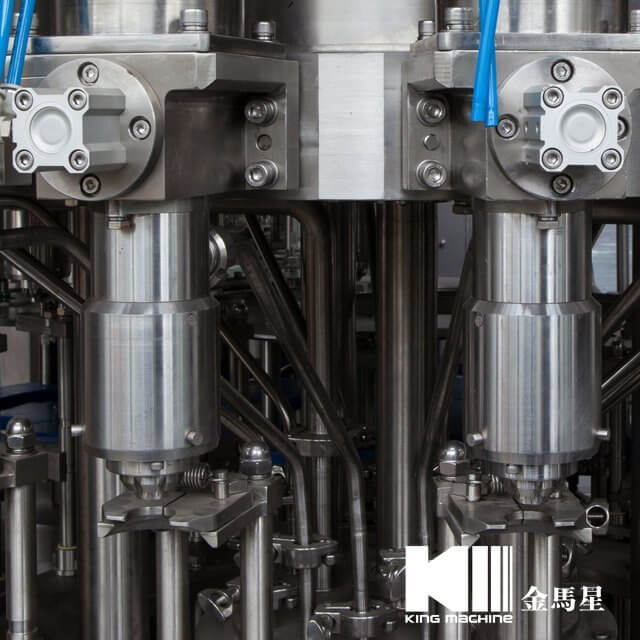

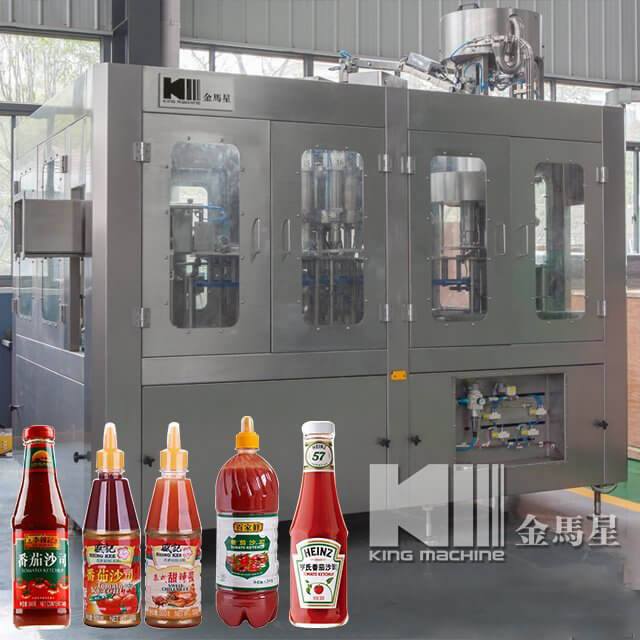

Product name:PET bottled Water Sauce Filling Machine
Rated Capacity:40-60BPM（based on 750ml, with 300ml, 500ml included, PEscrew cap）
Product: Sauce Jam
Filling temperature:about 82℃
Packing specification:
Containers and specifications
Material
Shape
Filling volume（ml）
Filling level（mm）
Neck type
PET
Round Bottle
750, with 500 and300 included
Distance to Bottle neck≤25mm
PCO28
Adjustable specifications of the bottle type
Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.
Packaging system
Container Label & Control Mode
PVC shrink labeler
Palletizing system
Hot Melt Roll-fed
Half-label
Packaging system
Min.Spec
Palletizing requirement
Min.Spec
Full Label
Automatic
------
-----
Manual palletizer
——
Manual
------
Note: above data needs to be confirmed with customer.

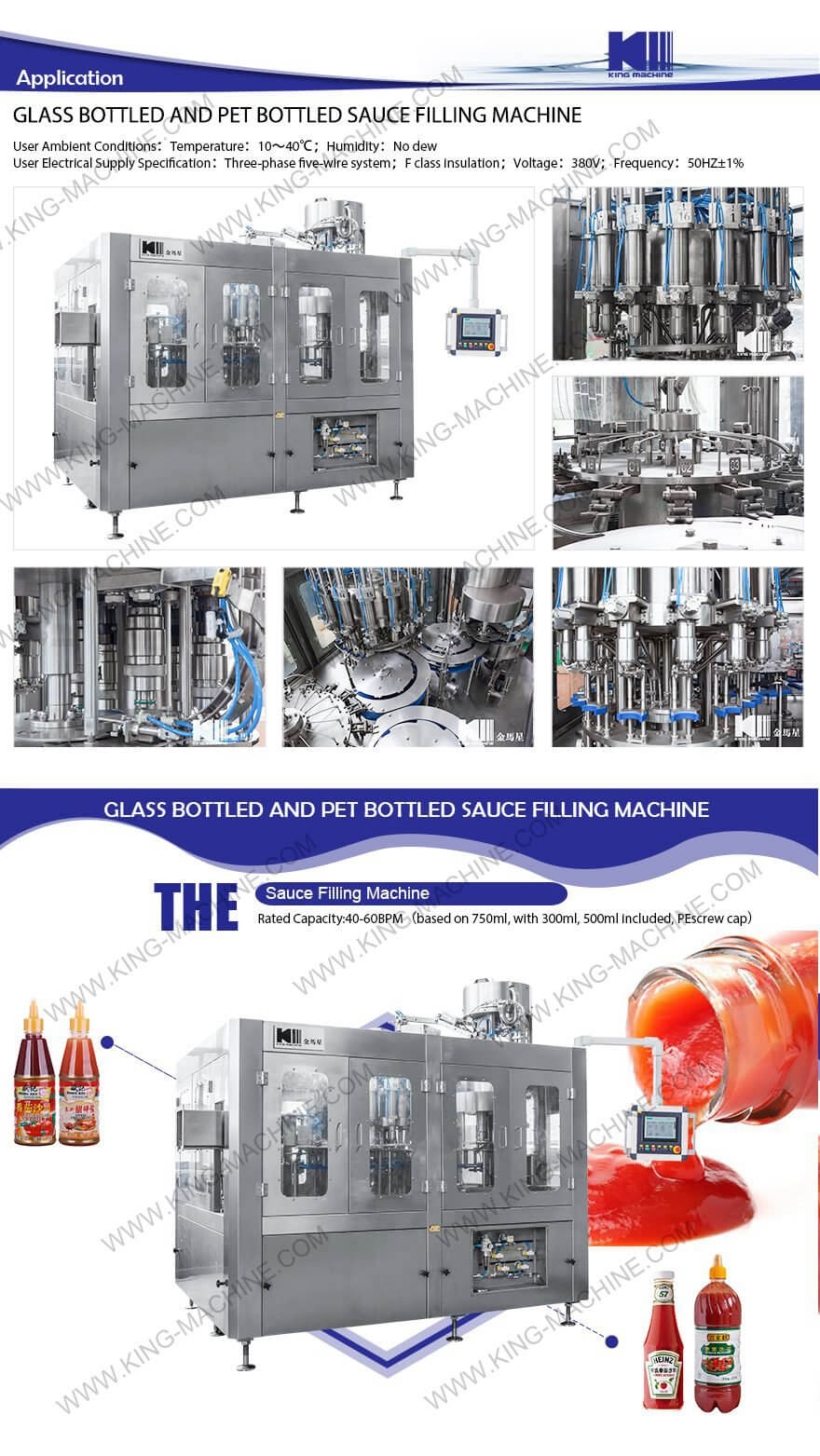

User Ambient Conditions：
Temperature：10～40℃；
Humidity：No dew
User Electrical Supply Specification：
Three-phase five-wire system；
F class insulation；
Raw material
↓
Volumetric filling
←
Blow molder
←
Preform
Air purification unit
↓
→

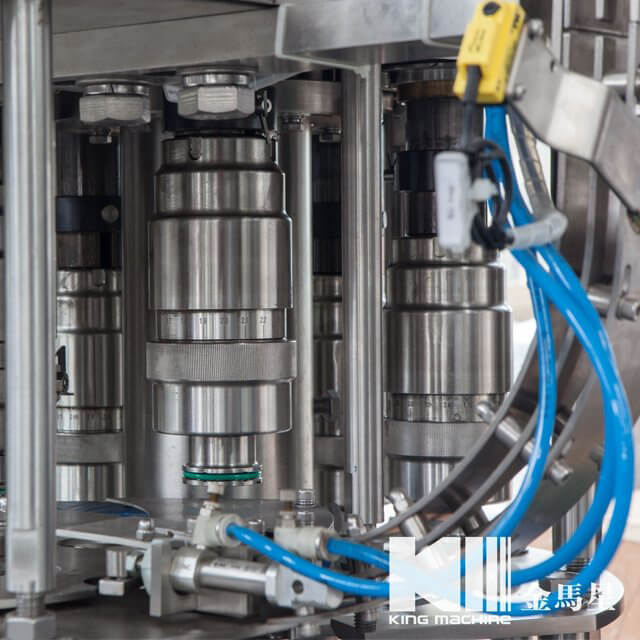

Capping
←
Sterile air drying
←
Sterile water rinsing
←
Cap sorter
←
Cap elevator
↓
↑
↑
Air blow dryer
①
Cap
↓
Bottle body ink jet
↓
Light
↓
Sleeve labeling machine
←
Label
↓
Light
↓
Full bottle conveying system
→
Film Shrinker
→
Case conveyor
→
Manual palletizer
→
Finished product storage
Note：Above flow chart is only for reference, which can be amended by customer’s requirement.
Main Design Parameters:
Item
Design parameters
Product sterilization
Tubular UHT sterilization
By the customer
Cap Sterilization condition
Ozone rinsing
≥10s
Sterile compressed air drying
2bar，≥2s
Filling Temperature
Ambient temperature
Use of filling recycle water
Customers determine
Use of cap rinsing recycle water
Customers determine
Note：
Above technical parameters are basic data for equipment model determination and configuration in this proposal;
Any adjustment to these data,will lead the change of equipment model and configuration
